EcoPOWER utilizes an electronic commutating (EC) motor installed in the head of the ventilator to enable motorised boost during periods of low wind speed or special ventilation needs. The motor can be activated by any digital measure, such as temperature, humidity gas concentration level et.

The standard product is controlled manually by a switch (not included).

SVS Products

Technical Specifications

MODEL	SUPPLY VOLTAGE	EXHAUST RATE (m3/hr)	POWER (W)
EP 100	6V DC	100	3.5
EP 150	9V DC	200	10
EP 400	240V AC	2400	68
EP 600	240V AC	4280	116
EP 900	240V AC	10000	260

EcoPower 400 EcoPower 600 EcoPower 900

Specifications

Material

Turbine & Throat	Aluminium
Dome	Aluminium
Brackets	Mild Steel (Powder Coated)

Weight

Weight

7.6 Kg

Electrical

Motor	Electronic Commutating (EC) motor
Input Voltage	200 - 277 VAC 50 / 60 Hz
Max. running current draw	0.28 A
Max. running power consumption	68 W
Specific flow rate (@ Δp=0)	38 m3/hr/W
Sound Pressure Level LA (@3m & Δp=0)	46 dB(A)

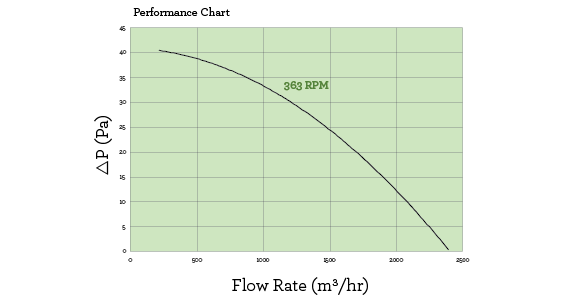

Performance Chart

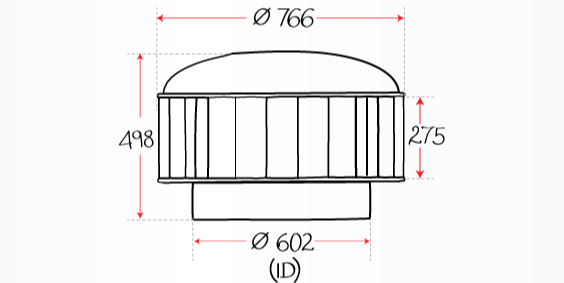

Specifications

Material

Turbine & Throat	Aluminium
Dome	Aluminium
Brackets	Mild Steel (Powder Coated)

Weight

Weight

14.4 Kg

Electrical

Motor	Electronic Commutating (EC) motor
Input Voltage	200 - 277 VAC 50 / 60 Hz
Max. running current draw	0.47 A
Max. running power consumption	116 W
Specific flow rate (@ Δp=0)	41 m3/hr/W
Sound Pressure Level LA (@3m & Δp=0)	49 dB(A)

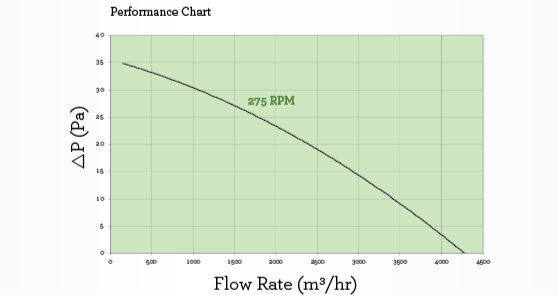

Performance Chart

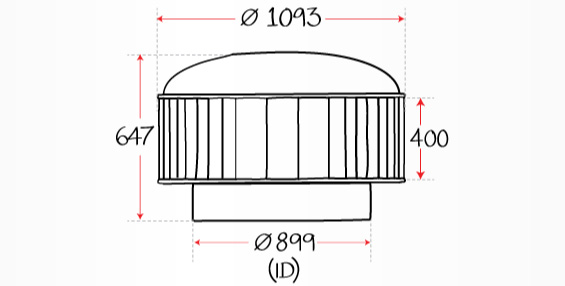

Specifications

Material

Turbine & Throat	Aluminium
Dome	Aluminium
Brackets	Mild Steel (Powder Coated)

Weight

Weight

30 Kg

Electrical

Motor	Electronic Commutating (EC) motor
Input Voltage	200 - 277 VAC 50 / 60 Hz
Max. running current draw	1.21 A
Max. running power consumption	260 W
Specific flow rate (@ Δp=0)	46 m3/hr/W
Sound Pressure Level LA (@3m & Δp=0)	45.5 dB(A)

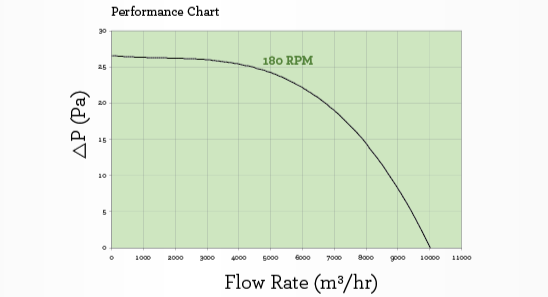

Performance Chart
